JET Tools 45T Ironworker (JIW-45T) 756100

JET Tools

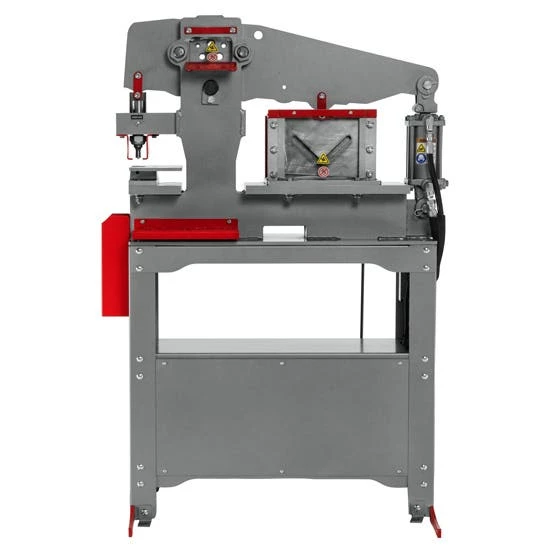

45 Ton Ironworker 756100

The JET 45 Ton Ironworker delivers 4 workstations to provide solutions to users needs, with a Punch workstation, a combination Flat Bar Shear and Angle Shear, and an integrated 7-size Rod Shear. Small and with a compact footprint, this Ironworker also includes a Punch & Die Holder and Slug Receptacle to keep the users work area clean and organized. This sturdy and tough Ironworker is Made in the USA and back by the JET RED Assurance 2-Year warranty.

FEATURES:

• Four Workstations: Punch, Flat Bar Shear, Angle Shear & Rod Shear.

• Operates on 115V power allowing use almost anywhere.

• ANSI Compliant Guarding on the Angle & Rod Shears.

• E-stop with UL Listed compliant controls providing additional operator safety.

• Includes a Punch & Die Storage Tray able to hold up to 10 Punch & Die Sets.

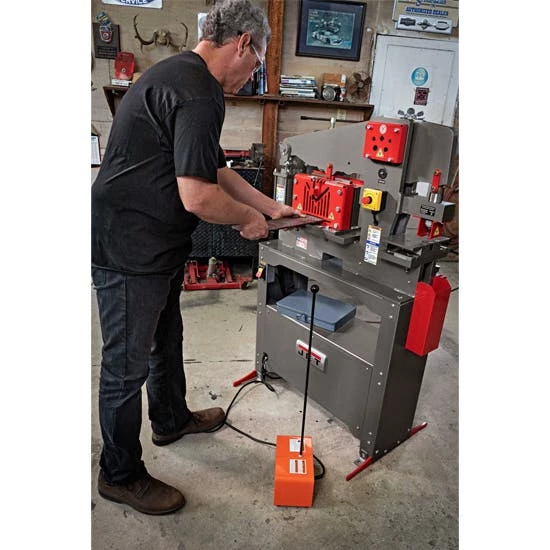

• Convenient foot control with handle is easy to move between workstations.

• Optimized workstation heights reduce user fatigue.

• Slug receptacle collects all punch slugs keeping work area clear.

• Blades for the Flat Bar, Angle and Rod Shear are made of precision machined, high-quality tool steel with 2 cutting edges for extended life.

• Compatible with most Edwards Punch & Die Sets including round, square, oblong, hex, and metric.

SPECIFICATIONS:

Angle Shear Max Capacity 1/4″	3 x 3
Angle Shear Max Capacity (In.)	3 x 3 x 1/4
Cylinder (In)	3-1/2″ Ram
Flat Bar Shear Max Capacity (In.)	1/4 x 8, 3/8 x 6
Flat Bar Shear Rating (Tons)	45
Flat Bar Shear Work Height (In.)	40
Gross Weight (Lbs)	802
Motor Amps	14
Motor (HP)	1-1/2 HP, 115V, 1Ph
Motor Speed (RPM)	3500
Overall Dimensions (L x W x H) (In.)	40 x 24 x 58
Punch Max Capacity (In.)	1 diam. In. 1/2 mild steel
Punch Stroke (In.)	1-1/2
Punch Work Height (In.)	41
Shipping Dimensions (L x W x H) (In.)	51 x 45 x 64
Valve Pressure (PSI)	2800
Weight (Lbs.)	698
Throat Depth (In.)	5-3/4
